OptiTrack's stage tracker is built from its own mocap cameras

The stage

OptiTrack publishes a dedicated page for virtual production that separates a stage tracking volume from a single accessory built for the job. The virtual-production page, retrieved 16 September 2026, states the system streams tracking data directly into Unreal Engine, and that Motive, OptiTrack's software, supports genlock, timecode and continuous calibration. It credits Primex 41 cameras with tracking the principal camera's location during production on Star Wars: The Mandalorian, and separately promotes a wired accessory called CinePuck, stating on the same page a positional accuracy of plus or minus 0.2mm, latency under 10ms, and rotational accuracy of plus or minus 0.1 degrees.

What the documents establish

Two documents together show a volume's tracking capability and one accessory's accuracy figure are not the same claim. The Unreal Engine InCam VFX tutorial, OptiTrack's own technical documentation, lists what a working setup needs: the same Prime-series cameras sold for general motion capture, plus an eSync2 synchronizer, a BaseStation, a CinePuck and a calibration probe. The tracking volume is built from OptiTrack's core mocap camera line, and CinePuck is the accessory mounted to the production camera for a precise reference point. The marketing page's accuracy figures are stated for that wired accessory specifically, not as a blanket claim for every Prime configuration, and this entry does not treat them as one. The tutorial pins its steps to Motive 2.3.x and Unreal Engine 4.27, both older than what a 2026 evaluation likely runs.

The department view

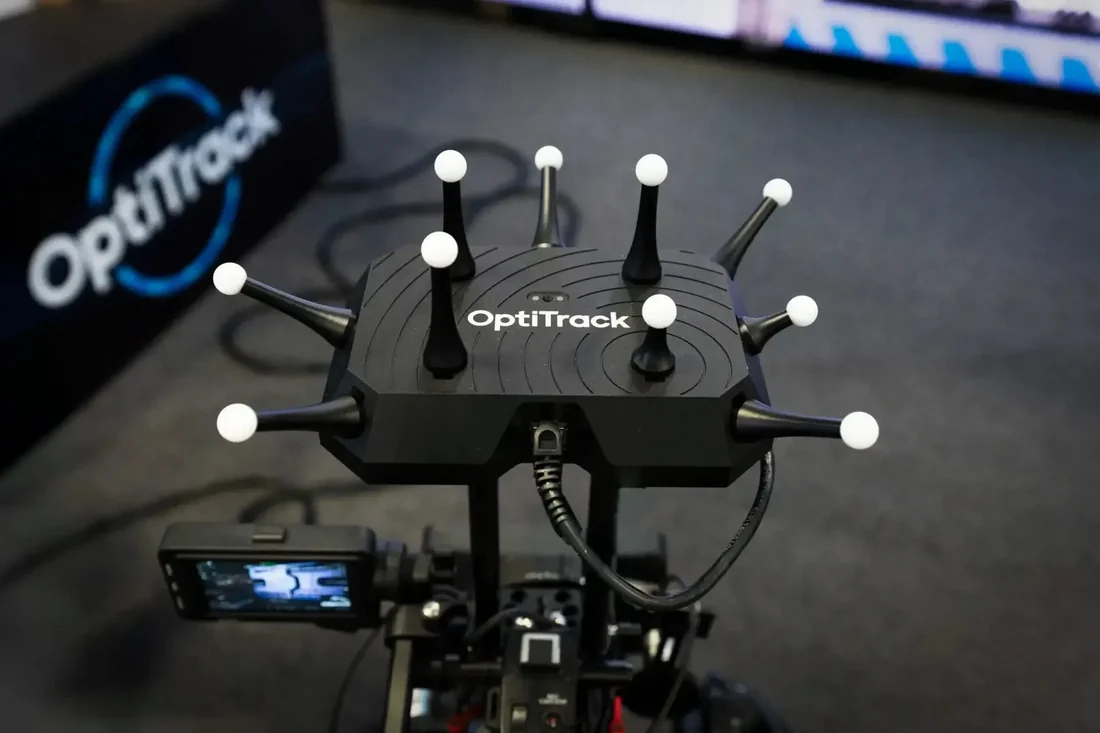

A tracking technician, working with the camera department, calibrates the Prime-camera volume and mounts the CinePuck to the camera body, typically inside a rig cage. The video engineer running the LED wall's signal chain owns the eSync2 and genlock timing, since OptiTrack ties camera tracking and video synchronization together rather than treating them as separate systems. The trade-off the documents record is direct: a wired accessory adds a physical tether to the camera for accuracy, weighed against the freedom of movement a wireless rig would offer.

What to check before you build

This is an editorial checklist, not a claim OptiTrack makes. Confirm current Motive and Unreal Engine plugin versions before relying on the tutorial's older build numbers, since a mismatch changes setup time and support options. Check OptiTrack's own footnote stating rotational accuracy varies with marker spacing before applying a single figure to a specific stage layout. Verify how many Prime cameras a given volume actually requires, since that count, not the CinePuck alone, is the larger line item in a system quote.

• Does the quoted accuracy figure apply to the wired CinePuck configuration, or a different camera arrangement?
• What Motive and Unreal Engine versions does the current Live Link plugin actually support?
• Who owns genlock and timecode sync between the tracking volume and the LED wall's video chain?

Read on their own terms, OptiTrack's materials describe a camera-tracking application built on its existing mocap camera catalog plus one purpose-built accessory, and the department that runs it spans both the tracking technician and the video engineer.
